Our Advanced Polarized Stress Meter measures internal stress in glass and plastic containers with high precision, utilizing polarized light interference principles. It offers qualitative and quantitative testing modes, complying with JJG196-2006, GB/T4545, GB/T12415, and YBB standards. Ideal for pharmaceutical enterprises, laboratories, and glass manufacturing.
Polarized Stress Meter testing is a critical method for measuring internal stress in glass and plastic containers using polarized light interference principles. It employs qualitative and quantitative modes with a 1/4 wave plate compensation method to assess stress levels, adhering to JJG196-2006, GB/T4545, GB/T12415, and YBB standards. This ensures reliable results for pharmaceutical packaging and lab applications.
In pharmaceutical industries, it ensures glass containers like infusion bottles and ampoules meet safety standards. For labs and glass manufacturing, it evaluates optical glass and materials, preventing defects. The meter’s precision helps manufacturers optimize production and comply with regulations.

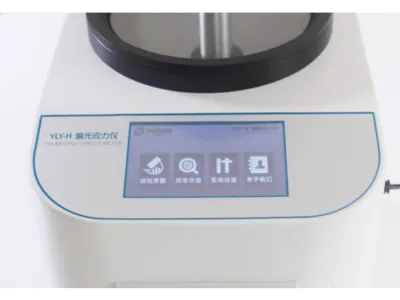

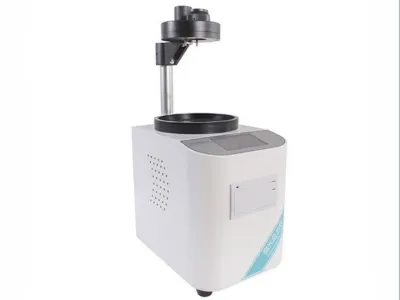

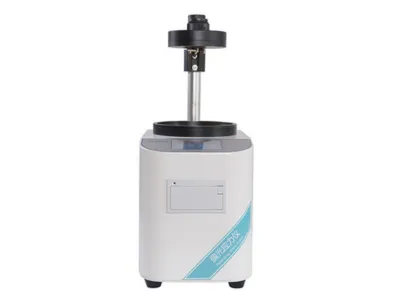

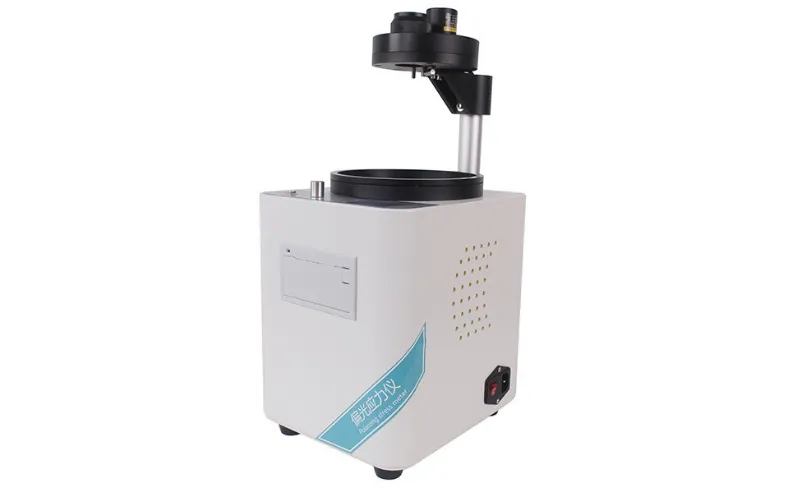

Our Polarized Stress Meter is a state-of-the-art solution designed for precise internal stress measurement in glass and plastic containers. Utilizing polarized light interference, it offers qualitative and quantitative testing modes with a high-precision angle encoder, touch screen display, and automatic test record storage. Compliant with JJG196-2006, GB/T4545, GB/T12415, and YBB standards, it’s ideal for pharmaceutical enterprises, laboratories, and glass manufacturing.

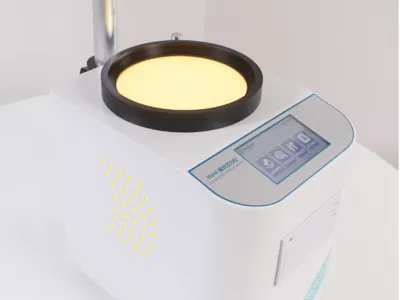

Featuring a 150mm polarized field diameter, 0.1nm instrument resolution, and 2nm accuracy, it includes automatic data storage for 200 groups (50 values each), a micro-printer, USB interface, and cloud backup. Its LED light source is 80% more energy-efficient than traditional sources, with a 12kg lightweight design (220x350x580mm) and supports global data access.
| Application | Description |
|---|---|
| Glass Infusion Bottles | Tests internal stress for pharmaceutical safety. |
| Molded Glass Bottles | Ensures quality in drug packaging. |
| Ampoules | Verifies stress levels in sealed containers. |
| Oral Liquid Bottles | Optimizes glass container durability. |
| Beer/Wine Bottles | Assesses stress in beverage packaging. |
Our Polarized Stress Meter complies with JJG196-2006, GB/T4545, GB/T12415, and YBB standards for reliable glass and plastic container testing.
| Parameter | Value |
|---|---|
| Instrument Resolution | 0.1 nm |
| Measurement Accuracy | 2 nm |
| Polarized Field Diameter | 150 mm |
| Rotation Angle | 360° |
| Light Field Brightness | >120 cd/m² |
| Light Field Luminance | ≥800 lux |
| Power Supply | AC 220V 50Hz |
| Dimensions | 220 mm (L) x 350 mm (W) x 580 mm (H) |
| Weight | 12 kg |
A pharmaceutical company improved glass bottle quality by using our Polarized Stress Meter, reducing defects by 20% and ensuring JJG196-2006 compliance.
Packaging: Packaged in a standard export wooden case for safe transportation.
Delivery: Typically delivered within 15 days after order confirmation.
Warranty: 1-year warranty with lifetime support, 1-hour response.
