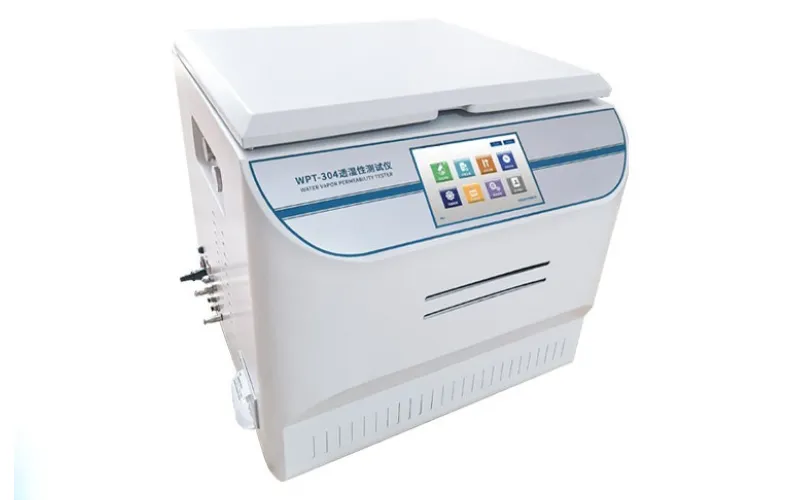

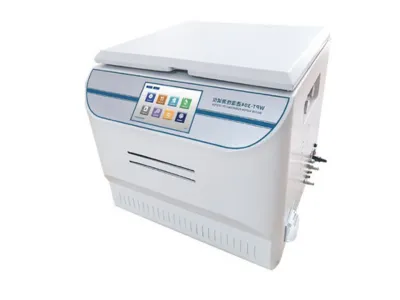

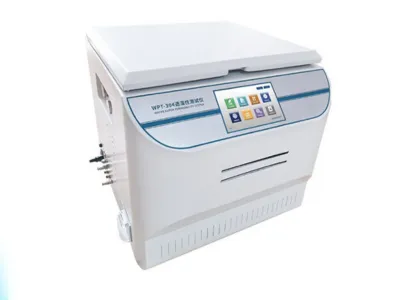

Our Water Vapor Transmission Rate Tester, based on the cup method principle, measures water vapor permeability for films, sheets, paper, textiles, and more with high accuracy. Featuring weigh-based testing, simultaneous testing of three samples, automatic zeroing, and wide-range temperature-humidity control, it complies with ISO 2528, GB 1037, ASTM E96, and other standards, offering robust support for packaging and material testing.
Water Vapor Transmission Rate Tester, also known as a permeability tester, uses the cup method to measure water vapor transmission rates in films, sheets, and textiles. It creates a humidity gradient across the sample, with weight changes over time determining permeability, adhering to ISO 2528, GB 1037, ASTM E96, and other standards. This ensures reliable performance for packaging, medical, and textile applications.
In packaging, it verifies barrier properties of plastic films and composites. In medical and building sectors, it assesses materials like paper and textiles for moisture control. The tester’s precision helps manufacturers meet diverse regulatory and application needs.

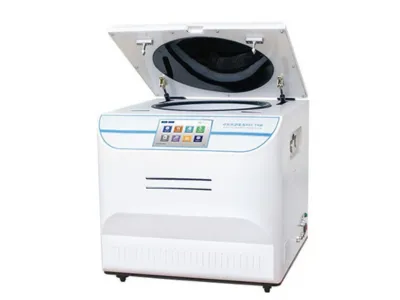

Our Water Vapor Transmission Rate Tester is a professional solution designed for accurate water vapor permeability measurement in films, sheets, paper, and textiles. Based on the cup method, it features weigh-based testing, simultaneous testing of up to three samples with micro-motor-controlled lifting, and automated temperature-humidity control. Compliant with ISO 2528, GB 1037, ASTM E96, and other standards, it’s ideal for plastic films, composites, and medical packaging.
With a test range of 0.01~10,000 g/m²·24h, system resolution of 0.001g, and support for samples up to 3 mm thick, it includes automatic zeroing, multi-format data storage (Excel, cloud), and a robust design (620x620x570mm, 97kg). It operates on AC 220V 50Hz with a Φ6mm polyurethane gas interface (user-provided compressed air or dry nitrogen).
| Application | Description |
|---|---|
| Plastic Films | Tests water vapor transmission in plastic and composite films. |
| Sheets | Evaluates permeability in engineering plastics and building materials. |
| Paper and Cardboard | Measures moisture transmission in paper-based materials. |
| Textiles | Assesses vapor permeability in fabrics and non-wovens. |
| Geotextiles | Ensures performance in waterproof membranes. |
Our Water Vapor Transmission Rate Tester complies with ISO 2528, GB 1037, GB/T 16928, ASTM E96, ASTM D1653, TAPPI T464, DIN 53122-1, JIS Z0208, and YBB 00092003 standards for reliable testing.
| Parameter | Value |
|---|---|
| Test Range | 0.01~10,000 g/m²·24h (conventional) |
| Sample Quantity | 1~3 pieces (optional 1-6 pieces) |
| Test Accuracy | 0.01 g/m²·24h |
| System Resolution | 0.001g |
| Test Temperature | Room temp ~ 65°C (conventional) |
| Temperature Control Accuracy | ±0.1°C |
| Test Humidity | 10%RH ~ 98%RH (standard 90%RH) |
| Humidity Control Accuracy | ±1%RH |
| Test Area | 33 cm² |
| Sample Thickness | ≤ 3 mm (customizable) |
| Sample Size | Φ74 mm |
| Test Chamber Volume | 50 L |
| Gas Source | Compressed air / Dry nitrogen |
| Gas Source Pressure | 0.6 MPa |
| Interface Size | Φ6mm polyurethane tube |
| Dimensions | 620 mm (L) × 620 mm (W) × 570 mm (H) |
| Power Supply | AC 220V 50Hz |
| Weight | 97 kg |
A packaging company improved film durability by 15% using our Water Vapor Transmission Rate Tester, ensuring ISO 2528 compliance.
Packaging: Packaged in a standard export wooden case for safe transportation.
Delivery: Typically delivered within 15 days after order confirmation.
Warranty: 1-year warranty, three months replacement within warranty, lifetime support.
