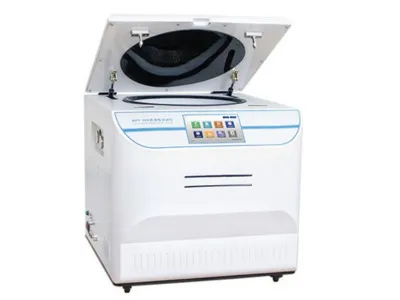

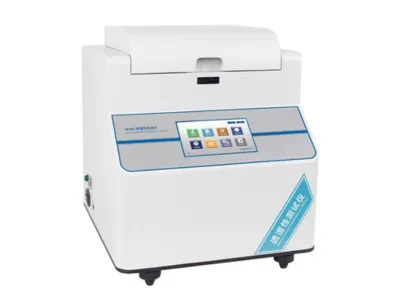

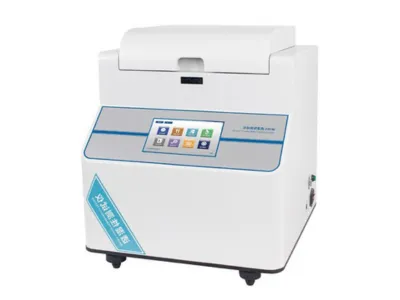

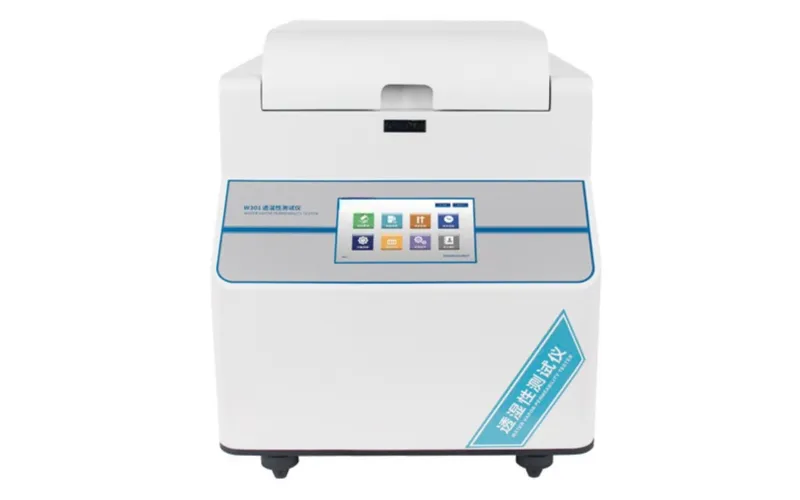

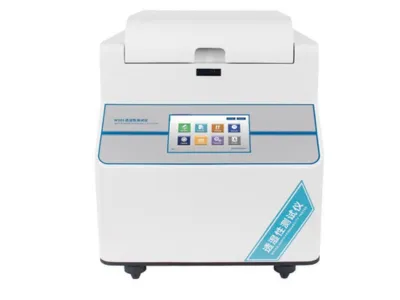

Our Film Water Vapor Permeability Tester, based on the cup method principle, is designed for precise water vapor transmission rate measurement in film samples. Suitable for plastic films, composite films, and materials in medical and building sectors, it features a high-definition touch screen, high automation, and accurate temperature-humidity control. Compliant with ISO 2528, GB 1037, ASTM E96, and other standards, it offers comprehensive technical support.
The Film Water Vapor Permeability Tester, based on the cup method, is a specialized instrument for measuring water vapor transmission rates in film samples. It creates a humidity gradient across the sample, with weight changes over time determining permeability, adhering to ISO 2528, GB 1037, ASTM E96, and other standards. This ensures reliable performance for controlling material properties in packaging, medical, and building applications.
In packaging, it optimizes plastic films and composites for moisture resistance. In medical and building sectors, it regulates material performance for diverse needs. The tester’s precision helps manufacturers meet technical and regulatory requirements.
Our Film Water Vapor Permeability Tester is a state-of-the-art solution designed for accurate water vapor transmission rate measurement in film samples. Utilizing the cup method, it features a high-definition touch screen, full automation with electric cylinder-controlled lifting, and precise temperature-humidity control. Compliant with ISO 2528, GB 1037, ASTM E96, and other standards, it’s ideal for plastic films, composites, and medical packaging.
With a test range of 0.1~10,000 g/m²·24h, system resolution of 0.0001g, and support for up to 4 samples (customizable to 8), it includes an innovative cyclic dehumidification system, multi-format data storage (Excel, cloud), and a compact design (500x500x550mm, 42kg). It operates on AC 220V 50Hz with a Φ6mm polyurethane gas interface.
| Application | Description |
|---|---|
| Plastic Films | Measures water vapor transmission in plastic films. |
| Composite Films | Ensures permeability control in multi-layer materials. |
| Medical Materials | Tests vapor transmission in medical packaging. |
| Building Materials | Evaluates moisture resistance in construction films. |
| Specialty Films | Assesses performance in custom applications. |
Our Film Water Vapor Permeability Tester complies with ISO 2528, GB 1037, GB/T 16928, ASTM E96, ASTM D1653, TAPPI T464, DIN 53122-1, JIS Z0208, and YBB 00092003 standards for reliable testing.
| Parameter | Value |
|---|---|
| Test Range | 0.1 ~ 10,000 g/m²·24h (customizable with weight gain mode) |
| Sample Quantity | 1 ~ 4 pieces (customizable to ≤8, data independent) |
| System Resolution | 0.0001 g |
| Test Temperature | 10°C ~ 55°C (conventional) |
| Temperature Control Accuracy | ±0.5°C |
| Test Humidity | 10%RH ~ 90%RH |
| Humidity Control Accuracy | ±1%RH |
| Purge Air Speed | 0.5 ~ 2.5 m/s (non-standard optional) |
| Test Area | 33.18 cm² |
| Sample Thickness | ≤ 3 mm (customizable) |
| Sample Size | Φ72 mm |
| Interface Size | Φ6 mm polyurethane tube |
| Dimensions | 500 mm (L) × 500 mm (W) × 550 mm (H) |
| Power Supply | AC 220V 50Hz |
| Weight | 42 kg |
| Production Region | Shandong Jinan |
| Customizable | Yes |
A film manufacturer improved moisture barrier by 18% using our Film Water Vapor Permeability Tester, ensuring ISO 2528 compliance.
Packaging: Packaged in a standard export wooden case for safe transportation.
Delivery: Typically delivered within 15 days after order confirmation.
Warranty: 1-year warranty, three months replacement within warranty, lifetime support.
