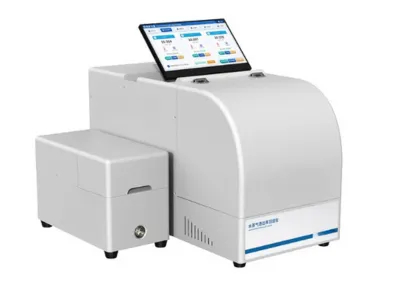

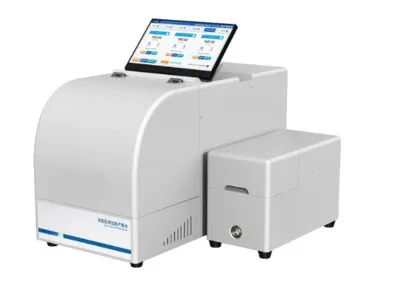

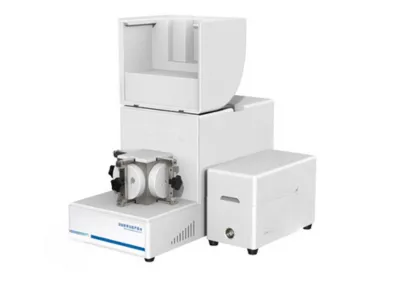

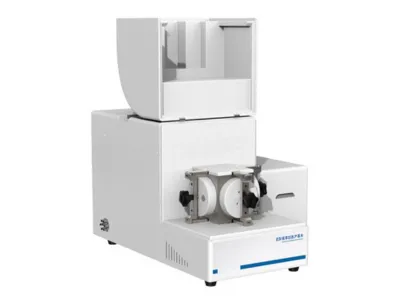

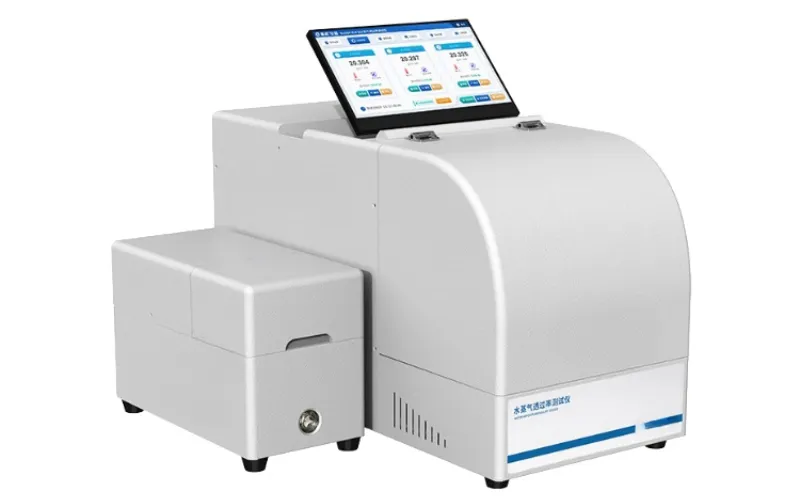

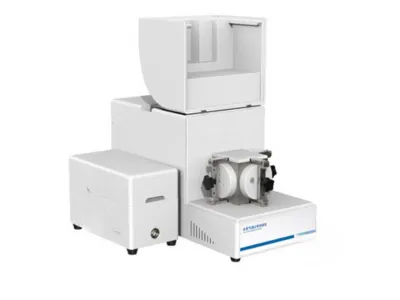

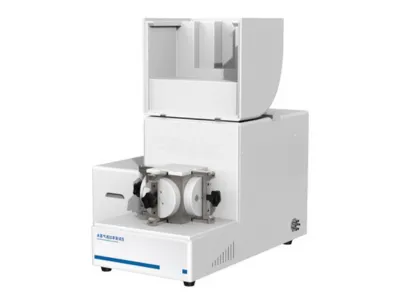

Our Infrared Water Vapor Transmission Rate Tester, based on high-precision infrared moisture sensors, provides water vapor transmission rate detection for medium to high barrier materials such as plastic films, composite films, and paper-plastic composites. Featuring a high-definition touch screen, three independent test chambers, and wide-range temperature-humidity control, it supports multi-format data storage and output, complying with ISO 15106-2, ASTM F1249, GB/T 26253-2010, and other standards, with ISP online upgrade capability.
Water Vapor Transmission Rate Tester testing is a critical method for measuring the water vapor permeability of medium to high barrier materials using infrared sensor principles. It employs a humidity gradient across test samples clamped between dry and wet chambers, with water vapor detected by an infrared sensor to calculate transmission rates, adhering to ISO 15106-2, ASTM F1249, GB/T 26253-2010, and other standards. This ensures reliable results for packaging, medical, and building applications.
In packaging, it ensures films and composites maintain product integrity. In medical and building sectors, it evaluates materials like waterproof membranes and insulation, preventing moisture damage. The tester’s precision helps manufacturers optimize material performance and meet regulatory requirements.
Our Infrared Water Vapor Transmission Rate Tester is a state-of-the-art solution designed for precise water vapor transmission rate measurement in medium to high barrier materials. Utilizing high-precision infrared moisture sensors, it features a high-definition touch screen, three independent test chambers, and automated wide-range temperature-humidity control. Compliant with ISO 15106-2, ASTM F1249, GB/T 26253-2010, TAPPI T557, JIS K7129, and YBB 00092003-2015 standards, it’s ideal for plastic films, composites, and medical packaging.
Equipped with a test range of 0.001 ~ 50 g/m²·24h (extendable to 0.01 ~ 100 g/m²·24h·0.1MPa), system resolution of 0.0001 g/m²·24h, and support for samples up to 3 mm thick, it includes multi-format data storage (Excel, cloud), ISP online upgrades, and a compact design (440x450x450mm, 42kg). It operates on AC 220V 50Hz with a 1/8-inch metal gas interface (user-provided gas and distilled water).
| Application | Description |
|---|---|
| Plastic Films | Measures water vapor transmission for packaging films. |
| Composite Films | Ensures barrier properties in multi-layer materials. |
| Paper-Plastic Composites | Tests permeability in hybrid packaging. |
| Geotextiles | Evaluates water vapor transmission in construction membranes. |
| Aluminum Foil Composites | Assesses high-barrier packaging integrity. |
Our Infrared Water Vapor Transmission Rate Tester complies with ISO 15106-2, ASTM F1249, GB/T 26253-2010, TAPPI T557, JIS K7129, and YBB 00092003-2015 standards for reliable testing.
| Parameter | Value |
|---|---|
| System Resolution | 0.0001 g/m²·24h |
| Test Range | 0.001 ~ 50 g/m²·24h (0.01 ~ 100 g/m²·24h·0.1MPa conventional) |
| Test Accuracy | 0.01 g/m²·24h·0.1MPa |
| Test Temperature | 10 ~ 60°C (conventional), Room temp ~ 55°C |
| Temperature Control Accuracy | ±0.1°C, ±0.5°C |
| Test Humidity | 5 ~ 90%RH, 100%R (10%RH ~ 98%RH standard) |
| Humidity Control Accuracy | ±1%RH, ±2%RH |
| Test Area | 50 cm² (customizable) |
| Sample Thickness | ≤ 3 mm (customizable) |
| Carrier Gas Flow | 0 ~ 200 ml/min |
| Test Pressure | ≥0.20 MPa |
| Interface Size | 1/8-inch metal tube |
| Dimensions | 440 mm (L) × 450 mm (W) × 450 mm (H) |
| Power Supply | AC 220V 50Hz |
| Weight | 42 kg |
| Sample Quantity | 1 ~ 3 pieces (data independent) |
A packaging firm enhanced film barrier performance by 20% using our Infrared Water Vapor Transmission Rate Tester, ensuring ISO 15106-2 compliance.
Packaging: Packaged in a standard export wooden case for safe transportation.
Delivery: Typically delivered within 15 days after order confirmation.
Warranty: 1-year warranty, three months replacement within warranty.
